Single Mode Fiber Array
Features and options
- 8, 12, 16, 24 or 32 channels (32 check availability and conditions)
- Single mode fiber: SMF28 Ultra, (soon UHNA, HP780,… check availability and conditions)
- Fiber length: 1 meter
- 180 μm, 250 μm or 254 μm pitch (127 μm under development)
- mpo connectors (other on request)
- Flat polished (other on request)
Need a custom configuration?
Send us your requirements and our team will prepare a quote.
Download the Fiber Array Datasheet
Get a complete overview of features, technical specifications, and available configurations.
Description

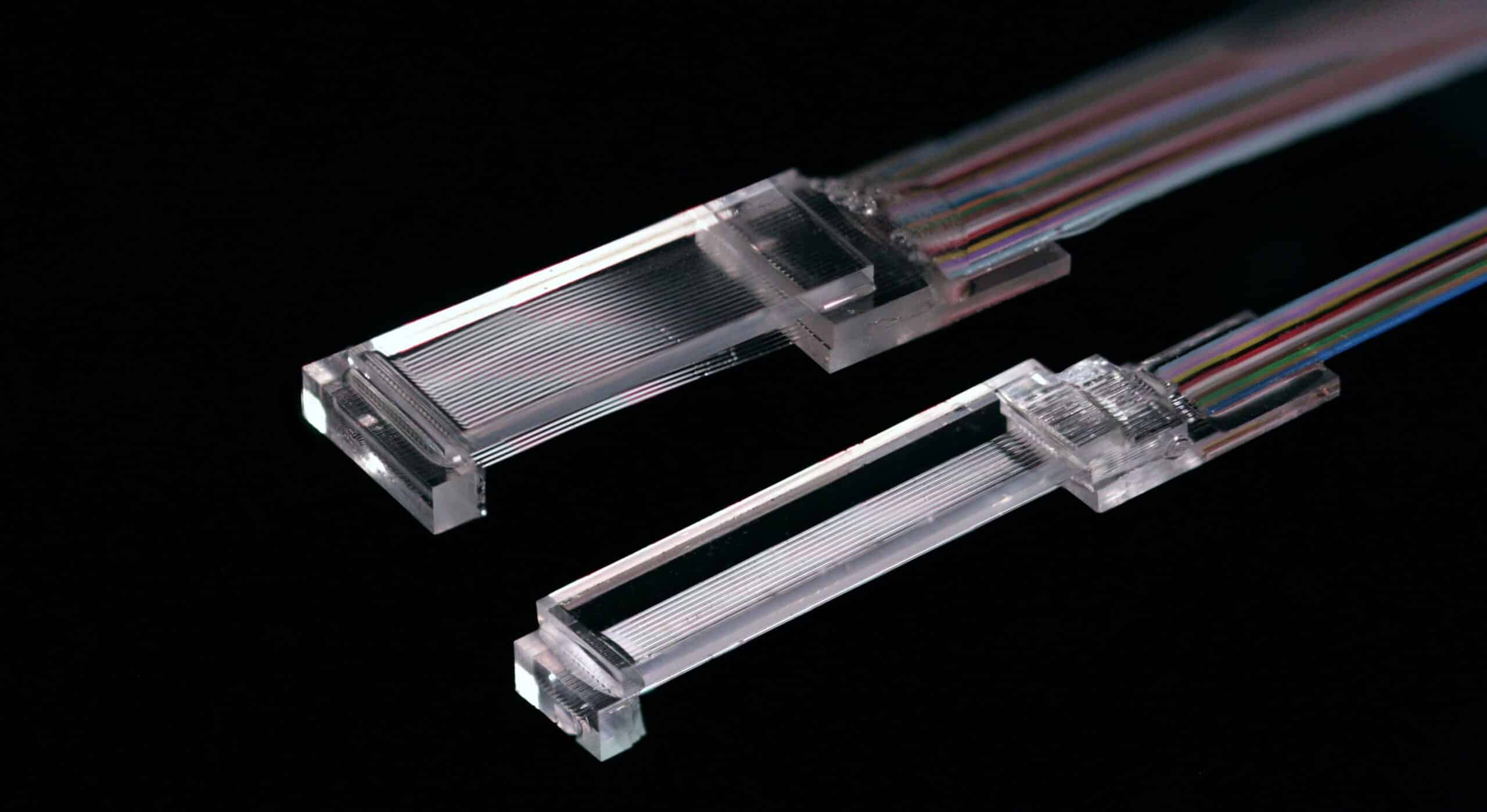

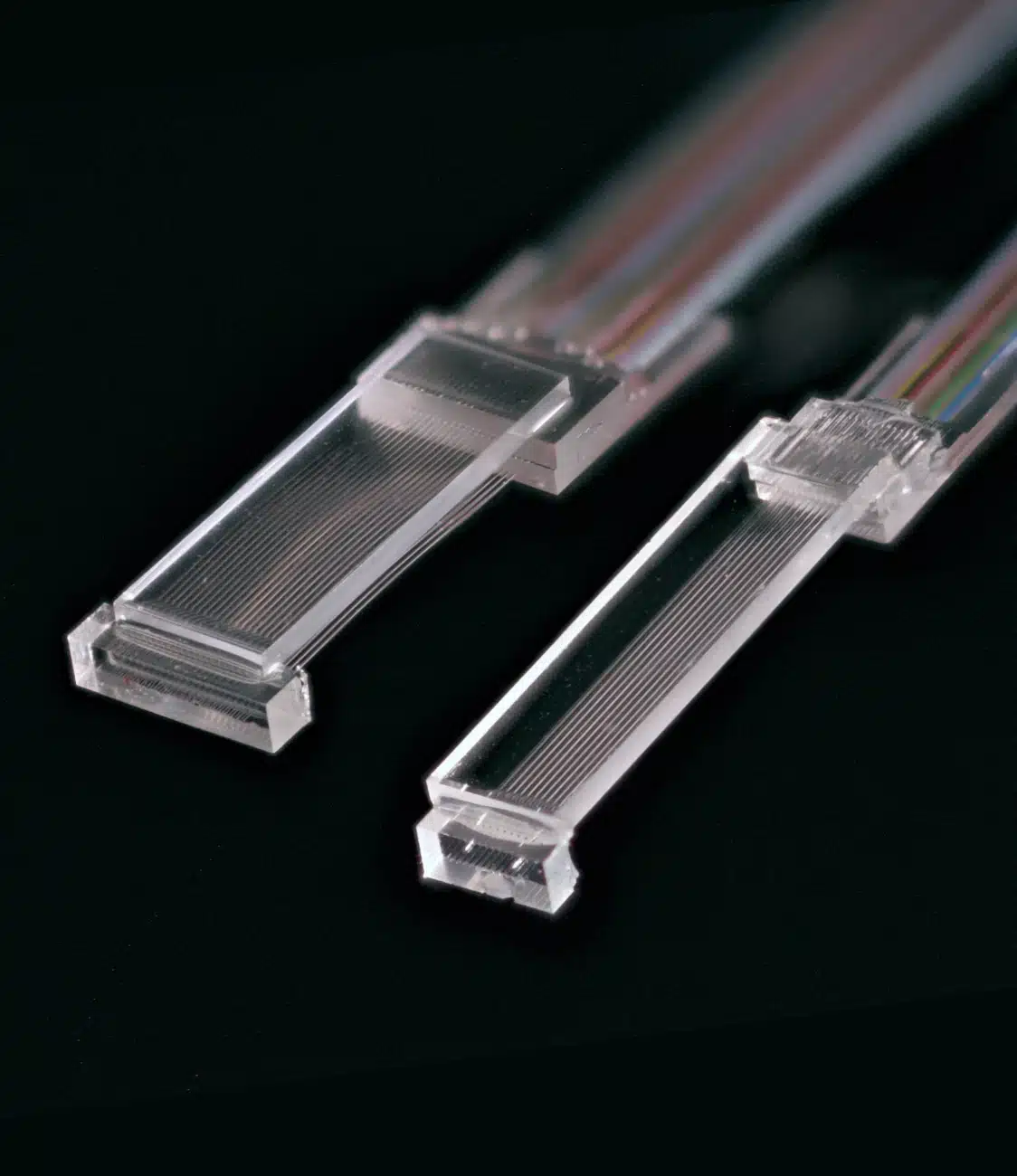

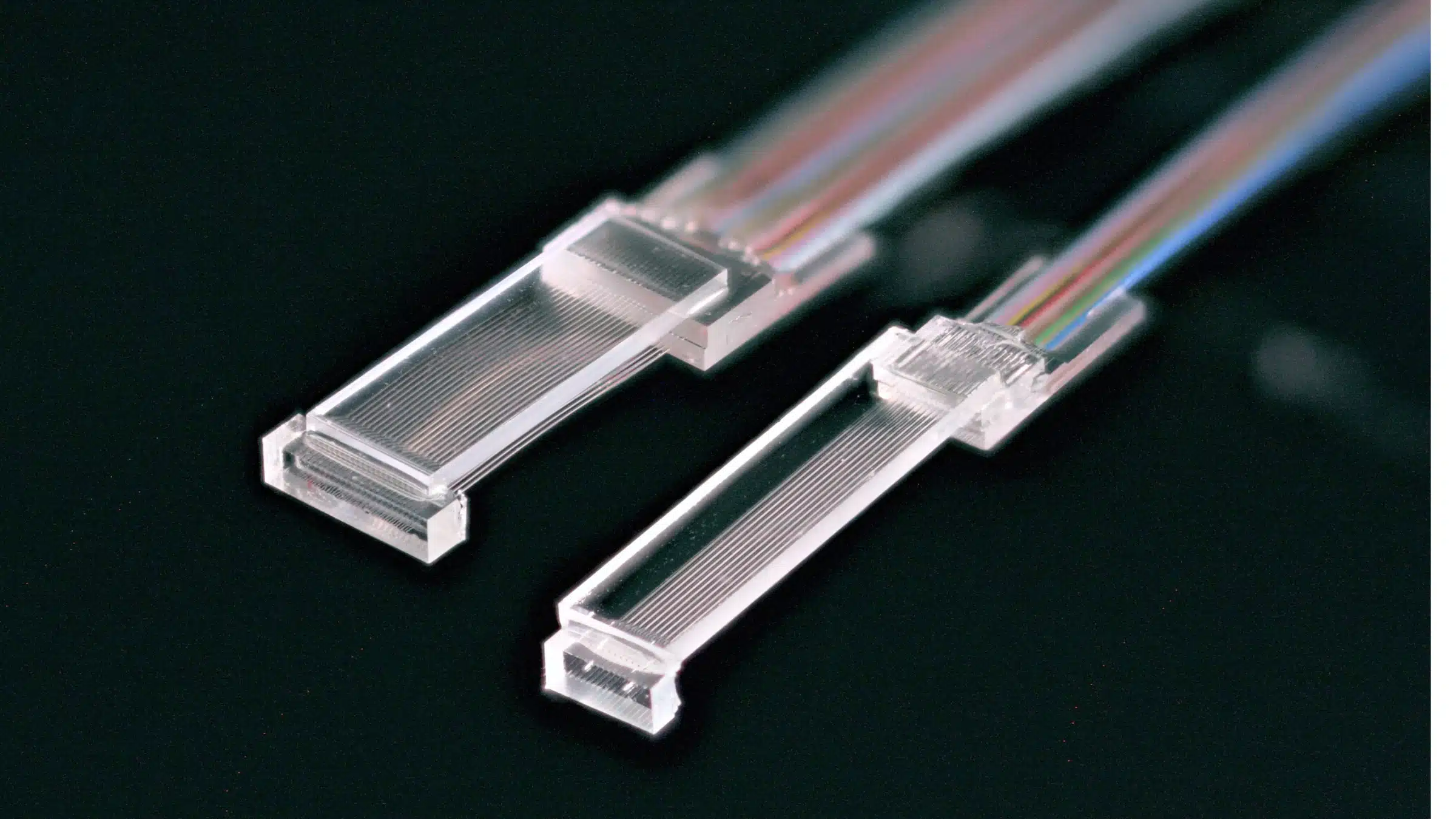

High Accuracy Fiber Arrays
MicroAlign’s fiber arrays are engineered for ultra-high-precision fiber-to-chip coupling in photonic integrated circuits (PICs), quantum computing, sensing, and advanced optical systems.
Our patented active micro-manipulation technology enables nanometer-level fiber positioning accuracy delivering repeatable, scalable, and production-ready fiber array solutions.

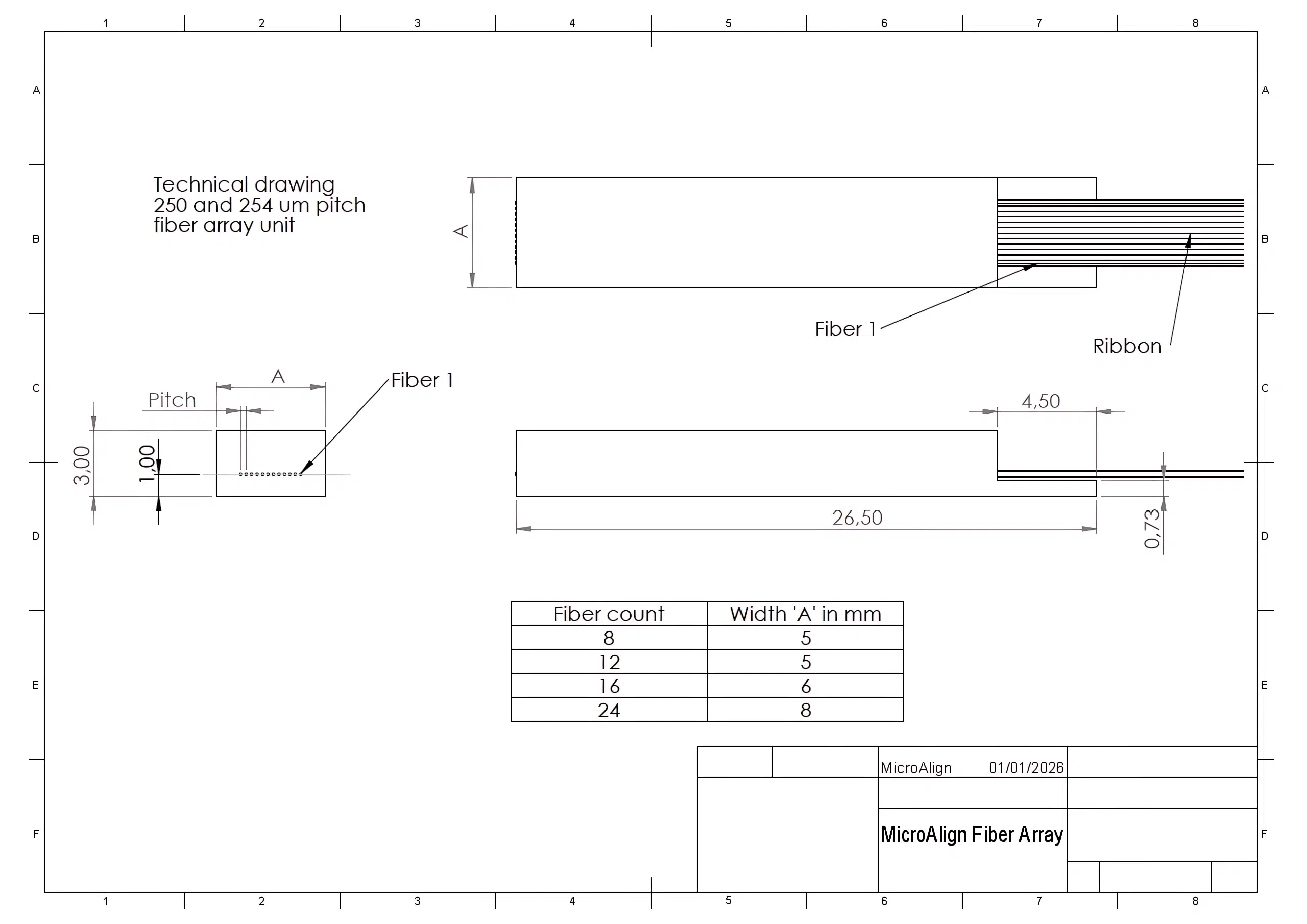

Technical drawings
Key Features

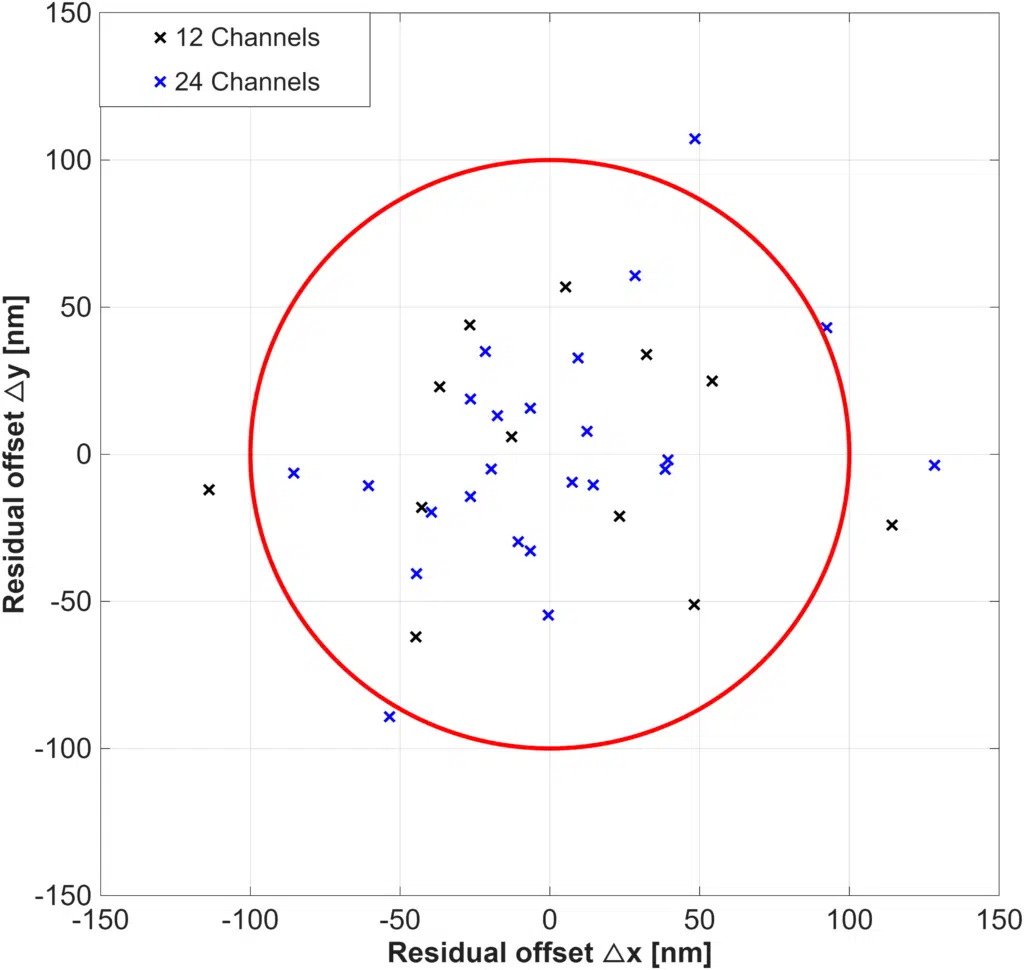

- Extreme accurate core pitch position ±100nm per fiber pitch accuracy
- 180, 250 or 254 μm pitch
- 8 up to 32 fibers, several fiber lengths
- Polishing angles for edge or surface coupling
- FC, LC or MPO connector interface
- UPC or APC connector polishing style
- Wavelengths ranging from UV to infrared (coming soon)
- Specialty fibers for visible wavelengths (coming soon)
Benefits
- Extreme accurate core pitch position ±100nm per fiber pitch accuracy
- Scalable volume demands ranging from the first prototypes to large quantities
- Photonic Integrated Circuit compatible
- High Polarization Extinction Ratio (PER) ?????
Possible Applications
Photonic Quantum Computing
Silicon Photonics & PIC Packaging
Optical Sensing
Aerospace & Defense
Telecom & Datacom
Advanced R&D Labs
